[jOOQ] Flyway + TestContainers 기반 jOOQ 시작하기

jOOQ? QueryDsl?

The easiest way to write SQL in Java

• jOOQ
• jOOQ Learn

Spring 기반 웹 애플리케이션을 개발할 때 거의 대부분 JPA (Java Persistence API)라는 ORM을 선택한다
JPA를 활용해서 개발을 하다가 DSL을 통해서 동적 쿼리를 편리하게 작성하기 위해서 QueryDsl-JPA을 도입한다



QueryDsl에 대한 생각

QueryDsl은 Type-Safe하게 JPQL을 작성할 수 있고 BooleanExpression을 통해서 Optional한 필드 쿼리 조건을 명시할 수 있다는 장점이 있다
하지만 QueryDsl도 결국 JPQL Builder이기 때문에 JPQL의 한계를 극복할 수는 없다

1. 성능
   • 결국 DB로 질의를 하는 순간에는 JPQL → SQL로 변환되어야 한다
   • 이러한 변환 과정 자체가 Native SQL에 비해 성능 저하로 이어질 수 있다
2. Vendor Specific Functions
   • DB Vendor별로 존재하는 Specific Function들을 Dialect 구현체마다 등록해서 사용한다는 점 자체가 번거롭다
3. From SubQuery
   • Hibernate에서는 Version 6.1부터 From절 SubQuery를 지원한다
   • 하지만 QueryDsl은 오픈소스 업데이트가 적극적으로 진행되지 않고 있고 그에 따라서 From절 SubQuery는 아직 지원하지 않는것으로 파악된다



가장 핵심적으로 살펴볼 점은 QueryDsl이 사실상 방치된 오픈소스라는 것이다

• Has QueryDSL started maintenance?
• Attempt to reproduce problem reported by spring-data team



GitHub - querydsl/querydsl: Unified Queries for Java

GitHub - OpenFeign/querydsl: Unified Queries for Java

• OpenFeign측에서 QueryDsl을 Fork하고 작업을 이어나가고 있고 Origin QueryDsl측에서도 2024/01/30 쯤에 5.1.0 버전을 relase했다
• 하지만 거의 3년동안 방치한 프로젝트가 다시 활발하게 활성화될지는 미지수이다

그렇다고 해서 지금 당장 QueryDsl을 버려라? 이 의미는 아니고 써도 된다

• 김영한 강사님 QueryDsl 의견
• 위에서 여러 단점을 말했지만 필자도 QueryDsl을 활용해서 여러 동적 쿼리를 편리하게 작성해왔고 DSL로 작성하는 것에 대한 편리함 또한 인정한다



QueryDsl이 적극적으로 Release하지 않는것에 대해서 걱정이 있고 MyBatis에 질려서 Native SQL을 코드 레벨에서 DSL 방식으로 작성하는 것에 흥미가 있는 개발자라면 jOOQ도 굉장히 좋은 대안이 될 수 있다고 생각한다

• 본 포스팅에서는 jOOQ뿐만 아니라 QueryDsl & Kotlin-JDSL을 활용한 간단한 예제 또한 보여줄 예정이다





실습

관련된 코드는 깃허브에서 확인할 수 있습니다

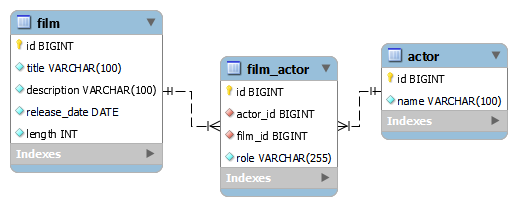

1. 도메인 정의 & ERD

굉장히 심플한 도메인 관계를 정의할 것이다

• 배우(Actor) & 영화(Film)
• 배우는 여러 영화에 출연할 수 있다
• 영화에는 여러 배우가 출연할 수 있다

CREATE TABLE IF NOT EXISTS actor
(
    `id`   BIGINT AUTO_INCREMENT PRIMARY KEY,
    `name` VARCHAR(100) NOT NULL
) ENGINE = InnoDB
  CHARSET = UTF8MB4;

CREATE TABLE IF NOT EXISTS film
(
    `id`           BIGINT AUTO_INCREMENT PRIMARY KEY,
    `title`        VARCHAR(100) NOT NULL,
    `description`  VARCHAR(100) NOT NULL,
    `release_date` DATE         NOT NULL,
    `length`       INT          NOT NULL
) ENGINE = InnoDB
  CHARSET = UTF8MB4;

CREATE TABLE IF NOT EXISTS film_actor
(
    `id`       BIGINT AUTO_INCREMENT PRIMARY KEY,
    `actor_id` BIGINT       NOT NULL,
    `film_id`  BIGINT       NOT NULL,
    `role`     VARCHAR(255) NOT NULL
) ENGINE = InnoDB
  CHARSET = UTF8MB4;

ALTER TABLE film_actor
    ADD CONSTRAINT fk_film_actor_actor_id_from_actor
        FOREIGN KEY (actor_id)
            REFERENCES actor (id);

ALTER TABLE film_actor
    ADD CONSTRAINT fk_film_actor_film_id_from_film
        FOREIGN KEY (film_id)
            REFERENCES film (id);



2. Gradle (build.gradle.kts)

Gradle 기반 jOOQ & QueryDsl Model을 생성해보자

import nu.studer.gradle.jooq.JooqEdition
import nu.studer.gradle.jooq.JooqGenerate
import org.jooq.meta.jaxb.ForcedType
import org.jooq.meta.jaxb.Logging
import org.springframework.boot.gradle.tasks.bundling.BootJar
import org.testcontainers.containers.MySQLContainer
import org.testcontainers.utility.DockerImageName

plugins {
    ...
    id("org.flywaydb.flyway")
    id("nu.studer.jooq")
    kotlin("kapt")
    kotlin("plugin.jpa")
}

dependencies {
    // Data
    implementation("org.springframework.boot:spring-boot-starter-data-jpa")
    runtimeOnly("com.mysql:mysql-connector-j:${property("mysqlVersion")}")
    implementation("org.flywaydb:flyway-core:${property("flywayVersion")}")
    implementation("org.flywaydb:flyway-mysql:${property("flywayVersion")}")

    // jOOQ
    implementation("org.springframework.boot:spring-boot-starter-jooq")
    jooqGenerator("mysql:mysql-connector-java:${property("mysqlVersion")}")
    jooqGenerator("org.jooq:jooq:${property("jooqVersion")}")
    jooqGenerator("org.jooq:jooq-codegen:${property("jooqVersion")}")
    jooqGenerator("org.jooq:jooq-meta:${property("jooqVersion")}")

    // QueryDsl
    implementation("com.querydsl:querydsl-jpa:${property("queryDslVersion")}:jakarta")
    kapt("com.querydsl:querydsl-apt:${property("queryDslVersion")}:jakarta")
    kapt("jakarta.annotation:jakarta.annotation-api")
    kapt("jakarta.persistence:jakarta.persistence-api")

    // Kotlin JDSL
    implementation("com.linecorp.kotlin-jdsl:jpql-dsl:${property("kotlinJdslVersion")}")
    implementation("com.linecorp.kotlin-jdsl:jpql-render:${property("kotlinJdslVersion")}")
    implementation("com.linecorp.kotlin-jdsl:spring-data-jpa-support:${property("kotlinJdslVersion")}")
}

// jOOQ
val mysqlContainer = tasks.register("mysqlContainer") {
    val container = MySQLContainer<Nothing>(DockerImageName.parse("mysql:8.0.33")).apply {
        withDatabaseName("dsl")
        withUsername("root")
        withPassword("1234")
        start()
    }

    extra.set("jdbcUrl", container.jdbcUrl)
    extra.set("username", container.username)
    extra.set("password", container.password)
    extra.set("databaseName", container.databaseName)
    extra.set("container", container)
}

val mysqlJdbcUrl = mysqlContainer.get().extra["jdbcUrl"].toString()
val mysqlUsername = mysqlContainer.get().extra["username"].toString()
val mysqlPassword = mysqlContainer.get().extra["password"].toString()
val mysqlDatabaseName = mysqlContainer.get().extra["databaseName"].toString()
val container = mysqlContainer.get().extra["container"] as MySQLContainer<*>

buildscript {
    dependencies {
        classpath("mysql:mysql-connector-java:${property("mysqlVersion")}")
        classpath("org.flywaydb:flyway-mysql:${property("flywayVersion")}")
        classpath("org.testcontainers:mysql:${property("testContainersVersion")}")
    }

    configurations["classpath"].resolutionStrategy.eachDependency {
        if (requested.group.startsWith("org.jooq") && requested.name.startsWith("jooq")) {
            useVersion("${property("jooqVersion")}")
        }
    }
}

flyway {
    locations = arrayOf("filesystem:src/main/resources/db/migration")
    url = mysqlJdbcUrl
    user = mysqlUsername
    password = mysqlPassword
}

jooq {
    version.set("${property("jooqVersion")}")
    edition.set(JooqEdition.OSS)

    configurations {
        create("main") {
            jooqConfiguration.apply {
                logging = Logging.WARN
                jdbc.apply {
                    driver = "com.mysql.cj.jdbc.Driver"
                    url = mysqlJdbcUrl
                    user = mysqlUsername
                    password = mysqlPassword
                }
                generator.apply {
                    name = "org.jooq.codegen.DefaultGenerator"
                    database.apply {
                        name = "org.jooq.meta.mysql.MySQLDatabase"
                        inputSchema = mysqlDatabaseName
                        forcedTypes.addAll(
                            arrayOf(
                                ForcedType()
                                    .withName("varchar")
                                    .withIncludeExpression(".*")
                                    .withIncludeTypes("JSONB?"),
                                ForcedType()
                                    .withName("varchar")
                                    .withIncludeExpression(".*")
                                    .withIncludeTypes("INET")
                            ).toList()
                        )
                    }
                    generate.apply {
                        isDaos = true
                        isDeprecated = false
                        isRecords = true
                        isImmutablePojos = true
                        isFluentSetters = true
                        isJavaTimeTypes = true
                    }
                    target.apply {
                        directory = "build/generated/jooq" // jOOQ Model 생성 위치
                        packageName = "com.sjiwon.jooq" // 패키지명
                        encoding = "UTF-8"
                    }
                    strategy.name = "org.jooq.codegen.example.JPrefixGeneratorStrategy" // jOOQ Model Prefix Strategy
                }
            }
        }
    }
}

tasks.named<JooqGenerate>("generateJooq") {
    dependsOn("mysqlContainer")
    dependsOn("flywayMigrate")

    inputs.files(fileTree("src/main/resources/db/migration"))
        .withPropertyName("migration")
        .withPathSensitivity(PathSensitivity.RELATIVE)

    allInputsDeclared.set(true)
    outputs.cacheIf { true }
    doLast { container.stop() }
}

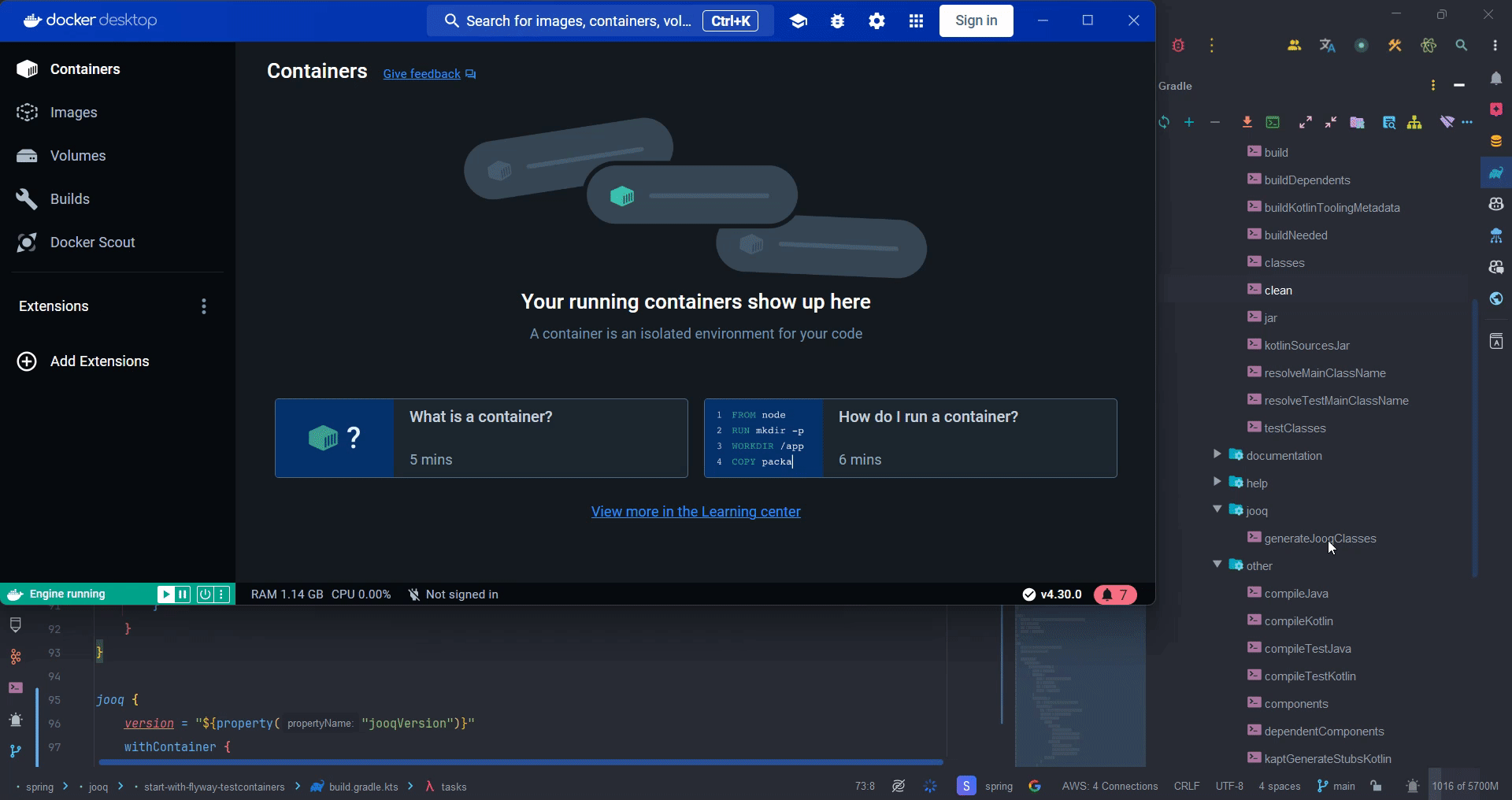

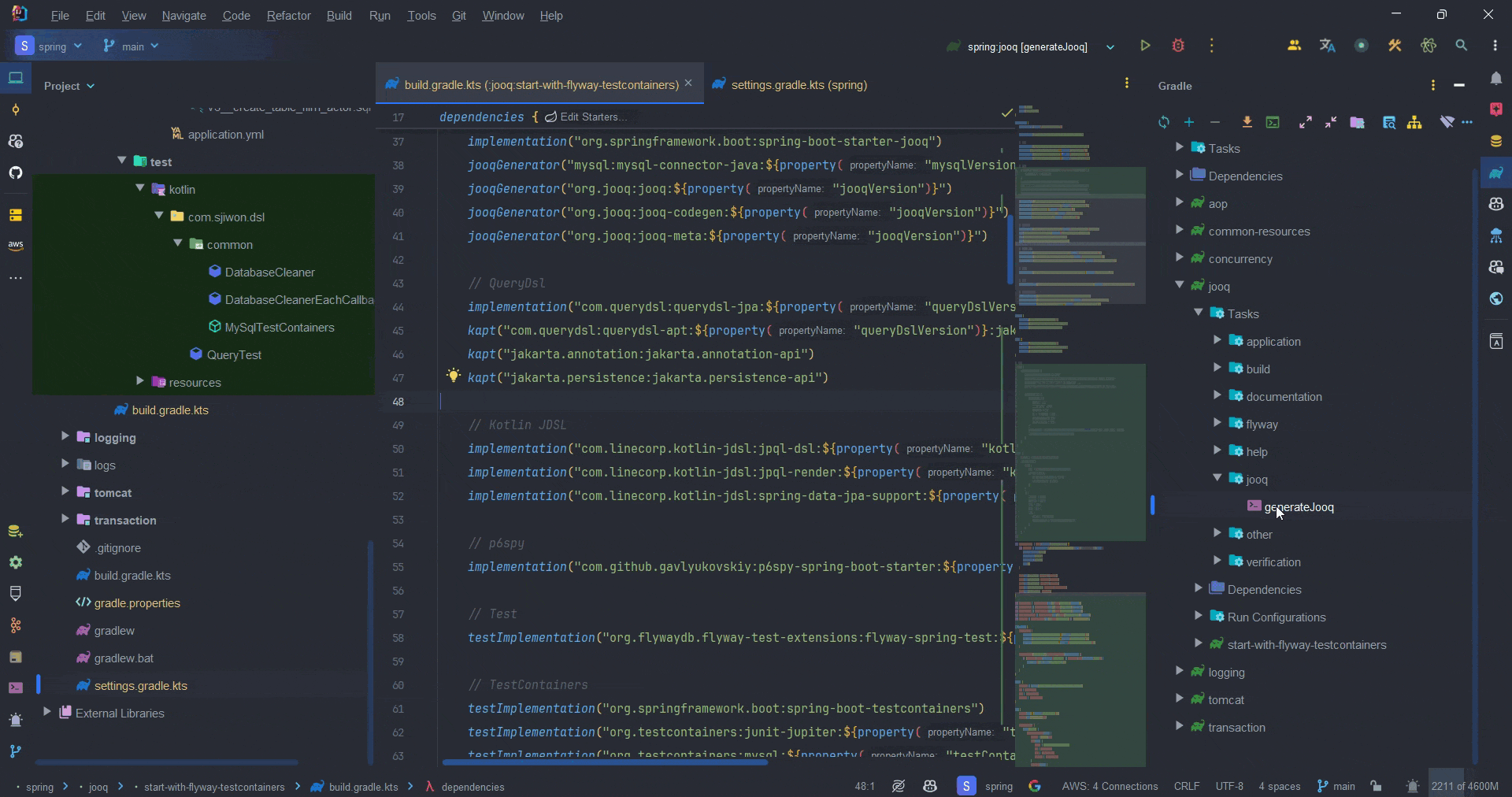

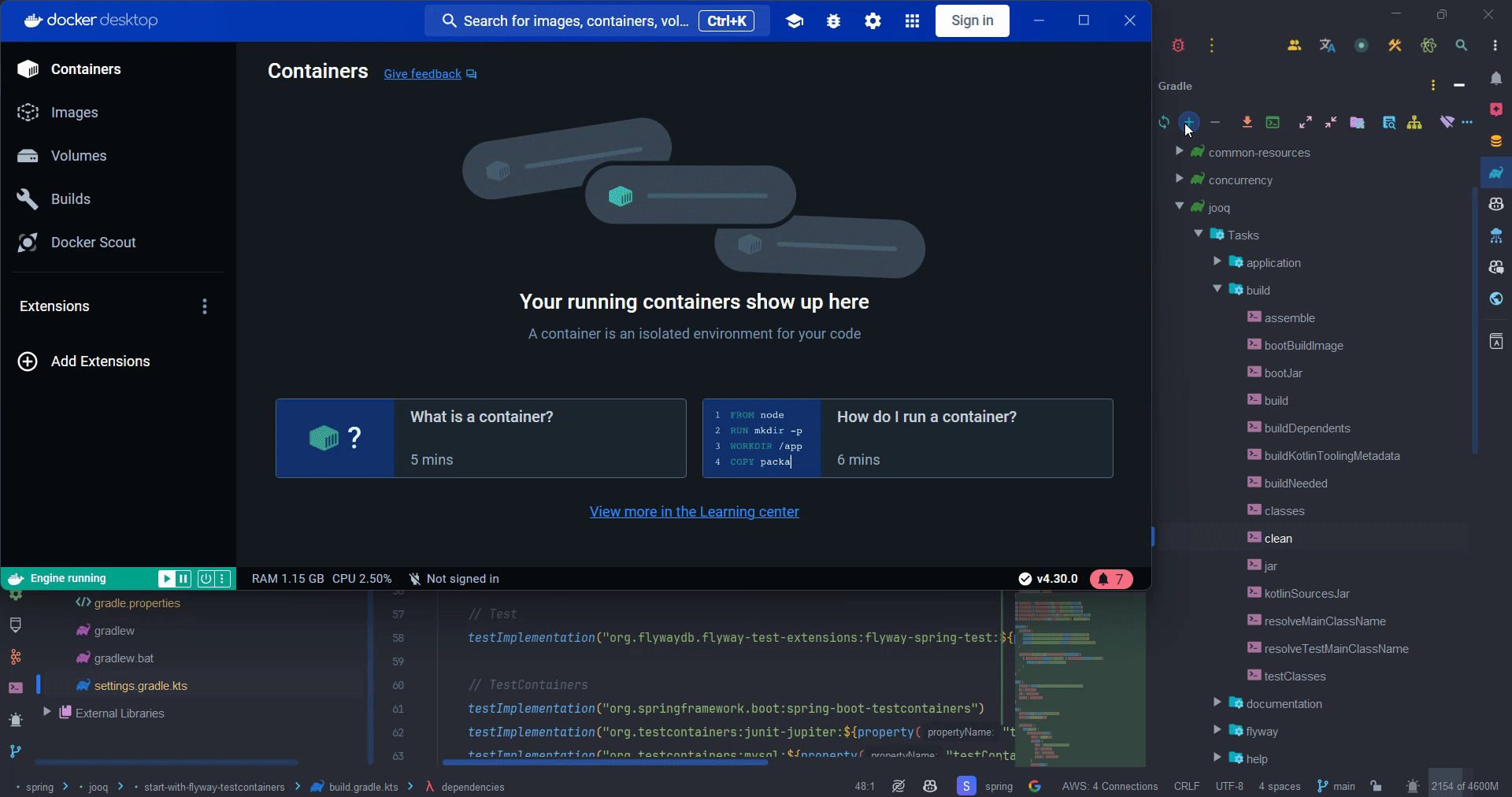

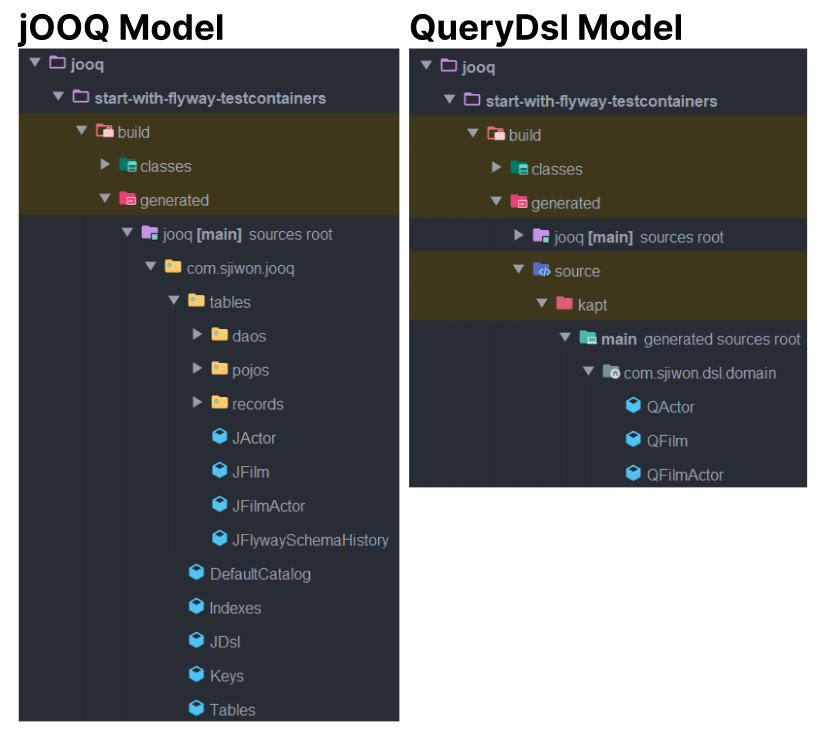

• Flyway + TestContainers 기반으로 jOOQ Model을 생성하였다



3. 쿼리 작성

@Entity
@Table(name = "actor")
class Actor(
    @Id
    @GeneratedValue(strategy = IDENTITY)
    val id: Long = 0L,
    val name: String,
)

@Entity
@Table(name = "film")
class Film(
    @Id
    @GeneratedValue(strategy = IDENTITY)
    val id: Long = 0L,
    val title: String,
    val description: String,
    val releaseDate: LocalDate,
    val length: Int,
)

@Entity
@Table(name = "film_actor")
class FilmActor(
    @Id
    @GeneratedValue(strategy = IDENTITY)
    val id: Long = 0L,
    val actorId: Long,
    val filmId: Long,
    val role: String,
)

interface QueryRepository {
    /**
     * 특정 배우가 참여한 영화 정보
     */
    fun fetchParticipatedFilms(name: String): List<ParticipatedFilm>

    /**
     * 특정 영화에 참여한 배우 정보
     */
    fun fetchParticipatedActors(title: String): List<ParticipatedActor>
}

data class ParticipatedFilm @QueryProjection constructor(
    val id: Long,
    val title: String,
    val releaseDate: LocalDate,
    val role: String,
)

data class ParticipatedActor @QueryProjection constructor(
    val id: Long,
    val name: String,
    val role: String,
)



1) jOOQ

@Repository
class JooqRepository(
    private val dsl: DSLContext,
) : QueryRepository {
    override fun fetchParticipatedFilms(name: String): List<ParticipatedFilm> {
        return dsl.select(
            FILM.ID,
            FILM.TITLE,
            FILM.RELEASE_DATE,
            FILM_ACTOR.ROLE,
        ).from(FILM_ACTOR)
            .innerJoin(ACTOR).on(ACTOR.ID.eq(FILM_ACTOR.ACTOR_ID))
            .innerJoin(FILM).on(FILM.ID.eq(FILM_ACTOR.FILM_ID))
            .where(ACTOR.NAME.eq(name))
            .orderBy(FILM.RELEASE_DATE.asc())
            .fetchInto(ParticipatedFilm::class.java)
    }

    override fun fetchParticipatedActors(title: String): List<ParticipatedActor> {
        return dsl.select(
            ACTOR.ID,
            ACTOR.NAME,
            FILM_ACTOR.ROLE,
        ).from(FILM_ACTOR)
            .innerJoin(ACTOR).on(ACTOR.ID.eq(FILM_ACTOR.ACTOR_ID))
            .innerJoin(FILM).on(FILM.ID.eq(FILM_ACTOR.FILM_ID))
            .where(FILM.TITLE.eq(title))
            .orderBy(ACTOR.NAME.asc())
            .fetchInto(ParticipatedActor::class.java)
    }
}

2) QueryDsl

@Repository
class QueryDslRepository(
    private val query: JPAQueryFactory,
) : QueryRepository {
    override fun fetchParticipatedFilms(name: String): List<ParticipatedFilm> {
        return query.select(
            QParticipatedFilm(
                film.id,
                film.title,
                film.releaseDate,
                filmActor.role
            )
        ).from(filmActor)
            .innerJoin(actor).on(actor.id.eq(filmActor.actorId))
            .innerJoin(film).on(film.id.eq(filmActor.filmId))
            .where(actor.name.eq(name))
            .orderBy(film.releaseDate.asc())
            .fetch()
    }

    override fun fetchParticipatedActors(title: String): List<ParticipatedActor> {
        return query.select(
            QParticipatedActor(
                actor.id,
                actor.name,
                filmActor.role
            )
        ).from(filmActor)
            .innerJoin(actor).on(actor.id.eq(filmActor.actorId))
            .innerJoin(film).on(film.id.eq(filmActor.filmId))
            .where(film.title.eq(title))
            .orderBy(actor.name.asc())
            .fetch()
    }
}

3) Kotlin JDSL

@Repository
class JdslRepository(
    private val em: EntityManager,
    private val context: JpqlRenderContext,
) : QueryRepository {
    override fun fetchParticipatedFilms(name: String): List<ParticipatedFilm> {
        val query: SelectQuery<ParticipatedFilm> = jpql {
            selectNew<ParticipatedFilm>(
                path(Film::id),
                path(Film::title),
                path(Film::releaseDate),
                path(FilmActor::role),
            ).from(
                entity(FilmActor::class),
                innerJoin(Actor::class).on(path(Actor::id).equal(path(FilmActor::actorId))),
                innerJoin(Film::class).on(path(Film::id).equal(path(FilmActor::filmId)))
            ).where(
                path(Actor::name).equal(name),
            ).orderBy(
                path(Film::releaseDate).asc(),
            )
        }
        return em.createQuery(query, context).resultList
    }

    override fun fetchParticipatedActors(title: String): List<ParticipatedActor> {
        val query: SelectQuery<ParticipatedActor> = jpql {
            selectNew<ParticipatedActor>(
                path(Actor::id),
                path(Actor::name),
                path(FilmActor::role),
            ).from(
                entity(FilmActor::class),
                innerJoin(Actor::class).on(path(Actor::id).equal(path(FilmActor::actorId))),
                innerJoin(Film::class).on(path(Film::id).equal(path(FilmActor::filmId)))
            ).where(
                path(Film::title).equal(title),
            ).orderBy(
                path(Actor::name).asc(),
            )
        }
        return em.createQuery(query, context).resultList
    }
}

• Kotlin JDSL은 QueryDsl & jOOQ처럼 APT(Annotation Processing Tool)나 CodeGenerator로 Model을 생성하는 것이 아니라 KClass, KProperty기반으로 DSL을 제공한다
• 굳이 단점을 꼽자면 Kotlin에서만 사용할 수 있고 기능 자체는 QueryDsl, jOOQ보다 부족하다

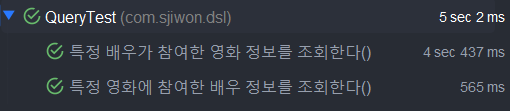

4. 쿼리 테스트

@AutoConfigureTestDatabase(replace = AutoConfigureTestDatabase.Replace.NONE)
@ContextConfiguration(
    initializers = [MySqlTestContainers.Initializer::class],
)
@ExtendWith(DatabaseCleanerEachCallbackExtension::class)
@IntegrationTest
class QueryTest(
    private val actorRepository: ActorRepository,
    private val filmRepository: FilmRepository,
    private val filmActorRepository: FilmActorRepository,
    private val jooq: JooqRepository,
    private val queryDsl: QueryDslRepository,
    private val jdsl: JdslRepository,
) {
    private lateinit var actors: List<Actor>
    private lateinit var films: List<Film>

    @BeforeEach
    fun setUp() {
        actors = actorRepository.saveAll(
            listOf(Actor(name = "Actor1"), Actor(name = "Actor2"), Actor(name = "Actor3"))
        )
        films = filmRepository.saveAll(
            listOf(
                Film(title = "Film1", description = "Hello Film1", releaseDate = LocalDate.of(2023, 5, 1), length = 80),
                Film(title = "Film2", description = "Hello Film2", releaseDate = LocalDate.of(2018, 2, 10), length = 100),
                Film(title = "Film3", description = "Hello Film3", releaseDate = LocalDate.of(2020, 6, 18), length = 90),
            )
        )
        filmActorRepository.saveAll(
            listOf(
                FilmActor(actorId = actors[0].id, filmId = films[0].id, role = filmRole(films[0], actors[0])),
                FilmActor(actorId = actors[1].id, filmId = films[0].id, role = filmRole(films[0], actors[1])),
                FilmActor(actorId = actors[2].id, filmId = films[0].id, role = filmRole(films[0], actors[2])),

                FilmActor(actorId = actors[0].id, filmId = films[1].id, role = filmRole(films[1], actors[0])),
                FilmActor(actorId = actors[1].id, filmId = films[1].id, role = filmRole(films[1], actors[1])),

                FilmActor(actorId = actors[0].id, filmId = films[2].id, role = filmRole(films[2], actors[0])),
                FilmActor(actorId = actors[2].id, filmId = films[2].id, role = filmRole(films[2], actors[2])),
            )
        )
    }

    @Test
    fun `특정 배우가 참여한 영화 정보를 조회한다`() {
        val resultJooq1 = jooq.fetchParticipatedFilms(actors[0].name)
        val resultQueryDsl1 = queryDsl.fetchParticipatedFilms(actors[0].name)
        val resultJdsl1 = jdsl.fetchParticipatedFilms(actors[0].name)
        assertParticipatedFilmsMatch(
            result = listOf(resultJooq1, resultQueryDsl1, resultJdsl1),
            filmIds = listOf(films[1].id, films[2].id, films[0].id),
            actorRoles = listOf(filmRole(films[1], actors[0]), filmRole(films[2], actors[0]), filmRole(films[0], actors[0])),
        )

        val resultJooq2 = jooq.fetchParticipatedFilms(actors[1].name)
        val resultQueryDsl2 = queryDsl.fetchParticipatedFilms(actors[1].name)
        val resultJdsl2 = jdsl.fetchParticipatedFilms(actors[1].name)
        assertParticipatedFilmsMatch(
            result = listOf(resultJooq2, resultQueryDsl2, resultJdsl2),
            filmIds = listOf(films[1].id, films[0].id),
            actorRoles = listOf(filmRole(films[1], actors[1]), filmRole(films[0], actors[1])),
        )

        val resultJooq3 = jooq.fetchParticipatedFilms(actors[2].name)
        val resultQueryDsl3 = queryDsl.fetchParticipatedFilms(actors[2].name)
        val resultJdsl3 = jdsl.fetchParticipatedFilms(actors[2].name)
        assertParticipatedFilmsMatch(
            result = listOf(resultJooq3, resultQueryDsl3, resultJdsl3),
            filmIds = listOf(films[2].id, films[0].id),
            actorRoles = listOf(filmRole(films[2], actors[2]), filmRole(films[0], actors[2])),
        )
    }

    @Test
    fun `특정 영화에 참여한 배우 정보를 조회한다`() {
        val resultJooq1 = jooq.fetchParticipatedActors(films[0].title)
        val resultQueryDsl1 = queryDsl.fetchParticipatedActors(films[0].title)
        val resultJdsl1 = jdsl.fetchParticipatedActors(films[0].title)
        assertParticipatedActorsMatch(
            result = listOf(resultJooq1, resultQueryDsl1, resultJdsl1),
            actorIds = listOf(actors[0].id, actors[1].id, actors[2].id),
            actorRoles = listOf(filmRole(films[0], actors[0]), filmRole(films[0], actors[1]), filmRole(films[0], actors[2])),
        )

        val resultJooq2 = jooq.fetchParticipatedActors(films[1].title)
        val resultQueryDsl2 = queryDsl.fetchParticipatedActors(films[1].title)
        val resultJdsl2 = jdsl.fetchParticipatedActors(films[1].title)
        assertParticipatedActorsMatch(
            result = listOf(resultJooq2, resultQueryDsl2, resultJdsl2),
            actorIds = listOf(actors[0].id, actors[1].id),
            actorRoles = listOf(filmRole(films[1], actors[0]), filmRole(films[1], actors[1])),
        )

        val resultJooq3 = jooq.fetchParticipatedActors(films[2].title)
        val resultQueryDsl3 = queryDsl.fetchParticipatedActors(films[2].title)
        val resultJdsl3 = jdsl.fetchParticipatedActors(films[2].title)
        assertParticipatedActorsMatch(
            result = listOf(resultJooq3, resultQueryDsl3, resultJdsl3),
            actorIds = listOf(actors[0].id, actors[2].id),
            actorRoles = listOf(filmRole(films[2], actors[0]), filmRole(films[2], actors[2])),
        )
    }

    private fun filmRole(
        film: Film,
        actor: Actor,
    ): String = "File${film.id}-Role${actor.id}"

    private fun assertParticipatedFilmsMatch(
        result: List<List<ParticipatedFilm>>,
        filmIds: List<Long>,
        actorRoles: List<String>,
    ) {
        result.forEach { record ->
            record.map { it.id } shouldContainExactly filmIds
            record.map { it.role } shouldContainExactly actorRoles
        }
    }

    private fun assertParticipatedActorsMatch(
        result: List<List<ParticipatedActor>>,
        actorIds: List<Long>,
        actorRoles: List<String>,
    ) {
        result.forEach { record ->
            record.map { it.id } shouldContainExactly actorIds
            record.map { it.role } shouldContainExactly actorRoles
        }
    }
}

-- jOOQ
select
        `dsl`.`film`.`id`,
        `dsl`.`film`.`title`,
        `dsl`.`film`.`release_date`,
        `dsl`.`film_actor`.`role`
    from
        `dsl`.`film_actor`
    join
        `dsl`.`actor`
            on `dsl`.`actor`.`id` = `dsl`.`film_actor`.`actor_id`
    join
        `dsl`.`film`
            on `dsl`.`film`.`id` = `dsl`.`film_actor`.`film_id`
    where
        `dsl`.`actor`.`name` = 'Actor1'
    order by
        `dsl`.`film`.`release_date` asc

-- QueryDsl
select
        f1_0.id,
        f1_0.title,
        f1_0.release_date,
        fa1_0.role
    from
        film_actor fa1_0
    join
        actor a1_0
            on a1_0.id=fa1_0.actor_id
    join
        film f1_0
            on f1_0.id=fa1_0.film_id
    where
        a1_0.name='Actor1'
    order by
        f1_0.release_date

-- Kotlin JDSL
select
        f1_0.id,
        f1_0.title,
        f1_0.release_date,
        fa1_0.role
    from
        film_actor fa1_0
    join
        actor a1_0
            on a1_0.id=fa1_0.actor_id
    join
        film f1_0
            on f1_0.id=fa1_0.film_id
    where
        a1_0.name='Actor1'
    order by
        f1_0.release_date
